humidifier
SJ double axle dust humidification mixer is an efficient equipment for mixing dust materials by water spraying. Mainly used in thermal power plants, iron and steel plants under the dust remover, but also for chemical, metallurgical, mining, building materials and other industries.
Advantages: 1. Through the control of water, to achieve the appropriate temperature requirements.
Product Name: SJ double axis dust humidifier
1. Overview:
SJ double axle dust humidification mixer is an efficient equipment for mixing dust materials by water spraying. Mainly used in thermal power plants, iron and steel plants under the dust remover, but also for chemical, metallurgical, mining, building materials and other industries.
Advantages: 1. Through the control of water, to achieve the appropriate temperature requirements.
2. Two sets of spiral blades are used for mixing, with high mixing efficiency and small floor area. The spiral blades are made of high wear-resistant special alloy or composite ceramics. Long service life.
3. The double shaft mixer adopts cycloidal pinwheel reducer to rotate, which is stable and low in noise.
4. The double shaft mixer feeds from the top and discharges from the bottom, with reasonable structure.
5. The sealing between the joint surfaces is tight and the operation is stable.
6. The double shaft mixer is equipped with humidification water spray system to ensure uniform water spray and adjust the water supply to meet the needs.

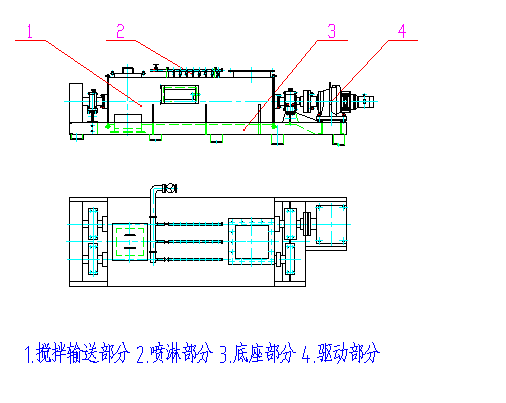

SJ double shaft dust humidifier structure diagram:
technical parameter:
Model | SJ-10 | SJ-20 | SJ-40 | SJ-60 | SJ-80 | SJ-100 | SJ-120 |
Treatment capacityt/h | 10 | 20 | 40 | 60 | 80 | 100 | 120 |
Helix diametermm | 400 | 400 | 600 | 600 | 700 | 700 | 800 |
Spindle speedRPM | 34 | 34 | 34 | 34 | 34 | 34 | 34 |
Reducer model | XWD5 | XWD6 | XWD8 | XWD9 | XWD10 | XWD10 | XWD11 |
Motor powerKw | 4.0 | 5.5 | 11 | 18.5 | 22 | 30 | 30 |
Sprinkler pressureMpa | 0.4-0.8 | ||||||
water content% | 15-20 |
Company:Shijiazhuang Yongxing Machinery Co., Ltd
Contact:Mr.wen
Tel:86-311-88219661
Mobile:86-18931860549
E-mail:sjzyxjx@163.com
Address:97 kilometers of HENGJING Road, Luancheng District, Shijiazhuang City, Hebei Province, China
